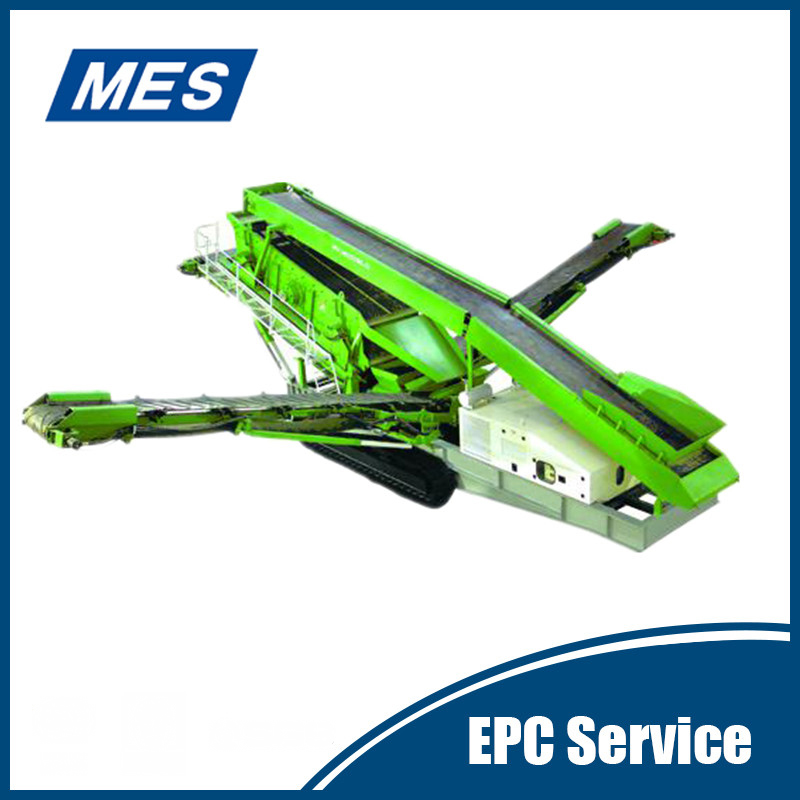

Track Screening Plant
- MES track screen plants are suitable for contracting, quarrying and in-pit crushing applications. With the HMT mobile plants, you can build a fully mobile and independent mobile process for your needs.
Model:HMT series
Weight:29000-32000kg
Composition:Feeder Belt,Screen,Side conveyor,Tracks,Engine

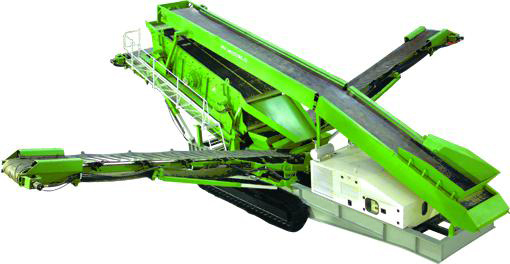

Track Screening Plant
1.Introduction of Track Screening Plant
MES mobile crushing & screening plants
are suitable for contracting, quarrying and in-pit crushing applications. With
the HMT mobile plants, you can build a fully mobile and independent mobile
process for your needs.
The proven HMT series features an extensive
range of track-mounted crushing plants designed for contracting, quarrying and
in-pit crushing applications. The plants are built around robust, high capacity
crushers, feeders and screens, enabling them to process practically any rock or
ore.
Replacing the conventional dump truck fleet
with a HMT series primary crushing plant followed by a belt conveying system,
or with a complete mobile in-pit crushing plant, brings significant savings in
production costs. It also significantly reduces the load on the environment.
The HMT Series plants can operate close to
the face, so the excavator or wheel loader operator can control the complete
crushing operation. This reduces both costs and the workload.
For aggregate production, the HMT Series
can comprise two or three stage crushing plants. For in-pit and mining
applications, the HMT range is complemented by conveyors and mobile apron
feeders.
2.Features of Track Screening Plant
- A combined plant—A Combined arrangement design plant saves land area, shortens the time between set up and production, and has a good land adaptation.
- A better mobility—The plants could move on road or quarries to meet various application.
- A lower freight—A blasting site crushing for mobile plants could save cost in oversize handling compared stationary plants.
- Flexible combination—Fexible combination for various crushing and screening systems, mobile crushing and screening plant can work dependently to meet the production demand for various.
-
High performance and reliability
Technical
Parameters
HMT1537SR
HMT1548SR
Weight(kg)
29000
32000
Feeder
Belt
Model
B1000
B1000
Hopper
Volume(m3)
0.6
0.8
Screen
Size(mm*mm)
1500*3700
1500*4800
Number
of Decks
2
2(3)
Drive
Hydraulic
Hydraulic
Side
conveyor
Length(mm)
8500
9000
Width(mm)
850
800
Discharge
Height(mm)
3600
3700
Drive
Hydraulic
Hydraulic
Tracks
Shone
Width(mm)
500
500
Engine
Model
1104D-E44T
1104D-E44T
Rating(kw)
74.5
74.5
Fuel
Capacity(L)
220
220
Hydraulic
Oil
Capacity(L)
500
600
Performance
Maximum
Feed Size(mm)
200
250
Capacity(t/h)
300
400
Maximum
Operating Slope
Side-to-Side
5°
5°
Front-to-Back
20°
16°
Fuel
Consumption
18.6L/h
(1800r/min)
18.6L/h(1800r/min)
