HOT Teetered Bed Separators' Good Performance in Mongolian CHPP

TBS-HOT Teetered Bed Separators' Good Performance in Mongolian CHPP.webp

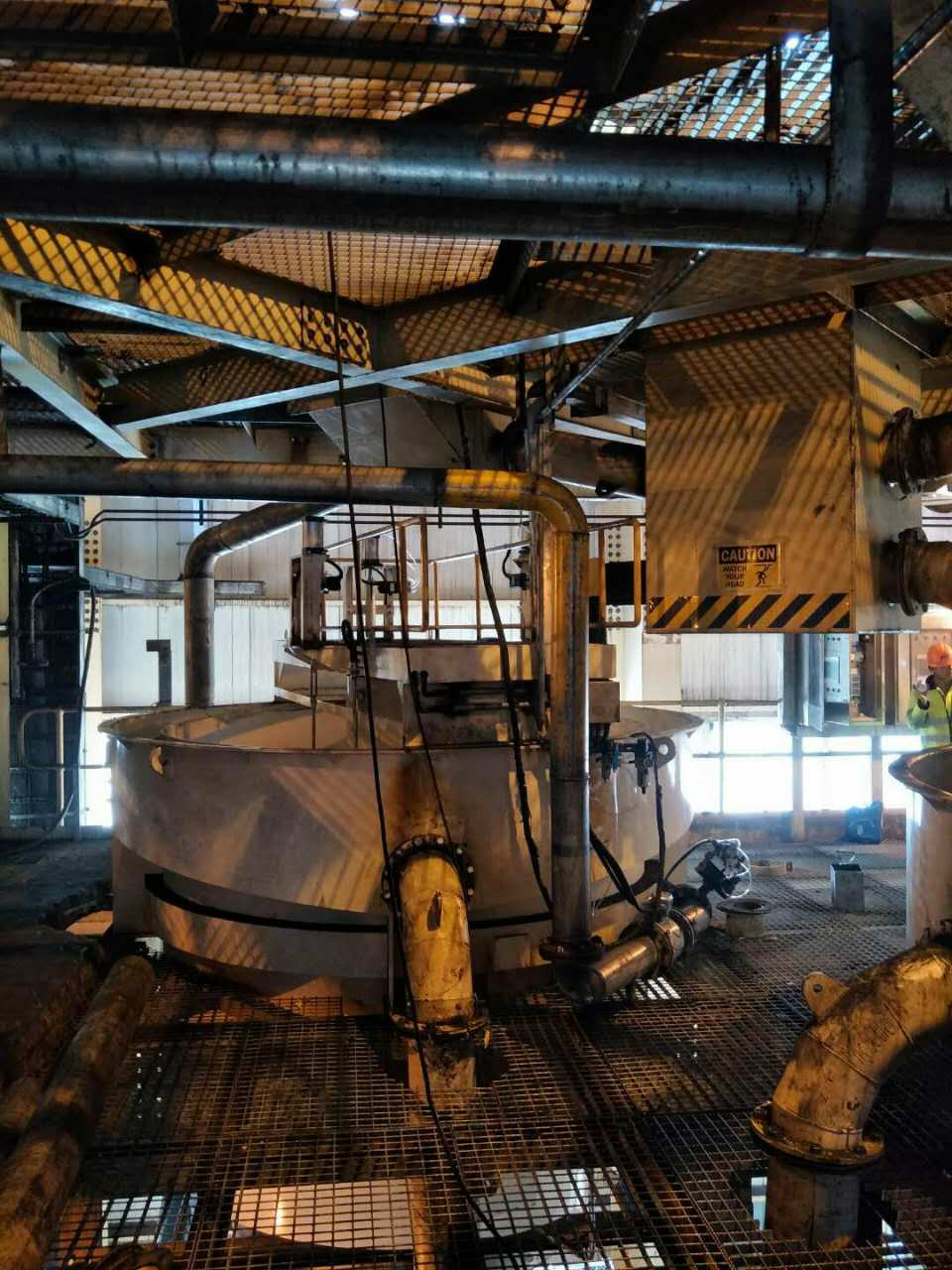

From the end of last September, 2 sets of HTBS-3.0 Teetered Bed Separators were applied in Mongolian UHG CHPP, and has showed great performance since then.

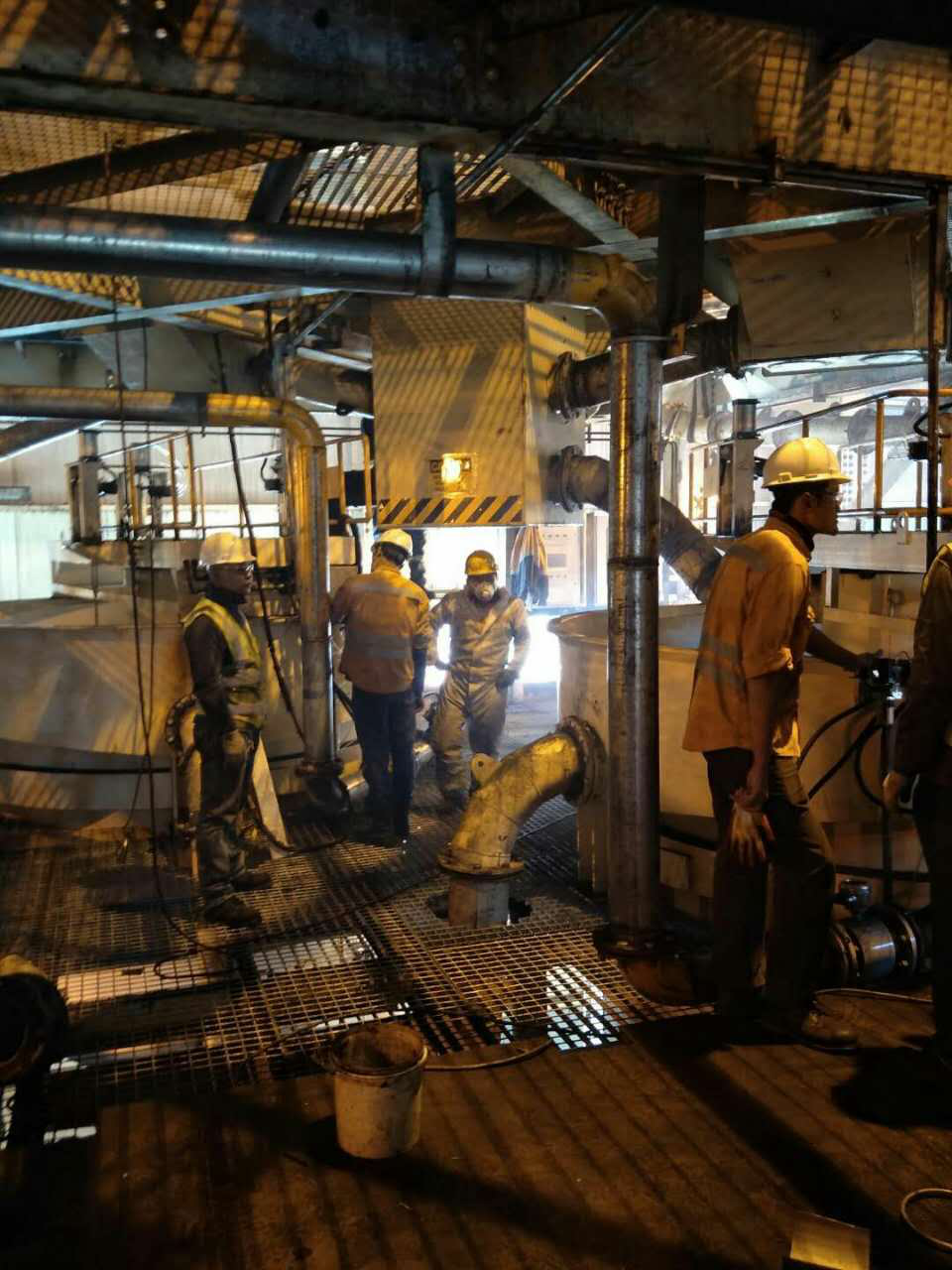

HOT Technicians were doing technical training for CHPP engineers

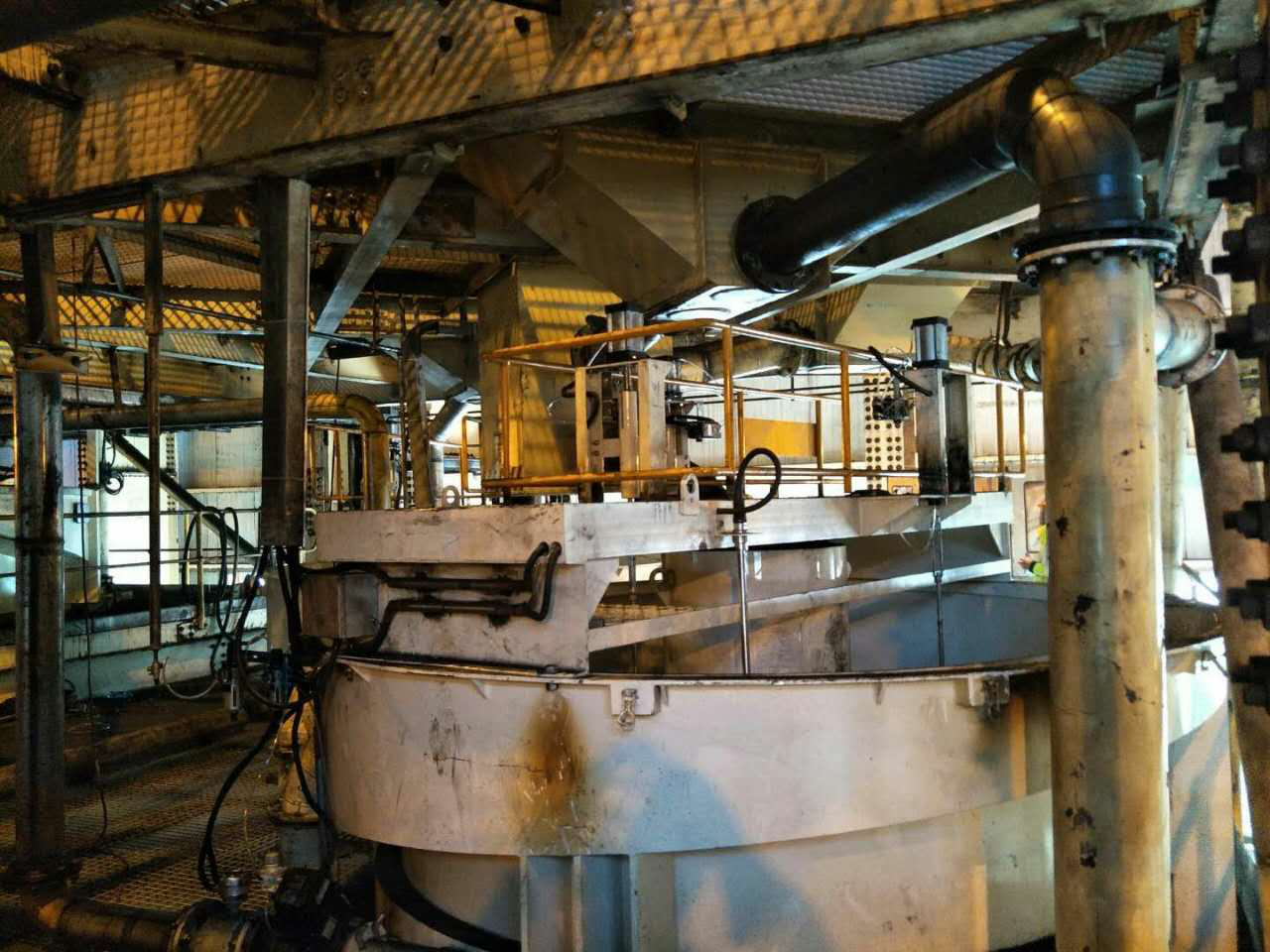

HTBS Expert Control System


Technical Parameters of HTBS-3.0 Teetered Bed Separator



Feeding Quantity (normal / max, t/h):80/120

Pulp Throughput: 350 m3/h

Pulp Feeding Concentration: 400~700g/l

Tank Diameter: 3000mm

Volume of Tank: 16.26 m3

Number of Tailings Discharge Valve: 3

Circulating Water Consumption: 120 m3/h

Height: 4000mm

Applicable Range of Separation Density: >1.0g/cm3

Possible Deviation: Ep0.12

Separation Efficiency: 90%

Circulating Water Inlet Pressure: 0.07-0.10 MPa

Feeding Size: 2~0.3mm

As an engineering based company, HOT Mining could provide integrated services from engineering design to key equipment supply for coal washing plant/CHPP.



For more information, please refer to our website:



Solutions:http://www.miningmes.com/coal-washing-plant-chpp/



Equipment:http://www.miningmes.com/mining-process-equipment/
