Flotation Froth Image Analyzer
- The Model DF-IA-I flotation froth image analyzer is a real-time analysis and online measurement instrument applied to flotation froth characteristic parameters in dressing process. The product adopts computer visual technology to analyze the real-time characteristic state of froths on the surface layer of flotation machine.

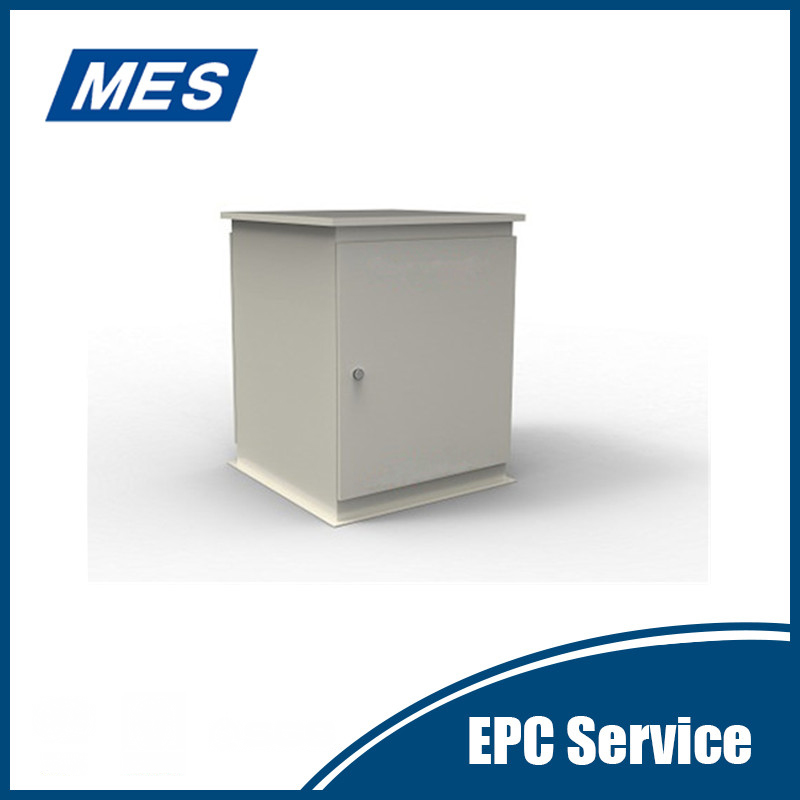

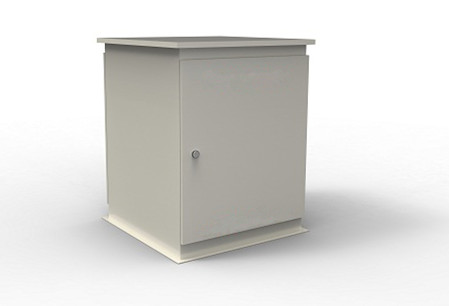

Model DF-IA-I Flotation Froth Image Analyzer
1.Product Introduction
The flotation froth image analyzer is a real-time analysis and online measurement instrument applied to flotation froth characteristic parameters in dressing process. The product adopts computer visual technology to analyze the real-time characteristic state of froths on the surface layer of flotation machine, reflect the stability and control situation of flotation production, provide quantified data for timely flotation control adjustment and simultaneously provide data support for optimal control and expert system model establishment.
2.Working Principle
The flotation froth image analyzing system uses computer visual technology to analyze froth image on real- time basis and obtains the characteristic data of the froths in the flotation tank as a result. It has solved such problem existing in the traditional process as being hard to ensure the accuracy and timeliness of data monitoring by relying on artificial observation and simultaneously solved such problem as being unable to provide reliable data for the optimal control system.
3.Product Functions
a.Provide real-time froth video image for first-line flotation personnel
b.Provide data support for normative flotation control
c.Provide data support for traceability in flotation production
d.Provide effective, accurate data support for optimal control in dressing
e.Monitor froth movement speed to timely regulate the control strategy and stabilize the production rate
4.Technical Parameters
a.Real froth size
b.Quantities of froths of different sizes
c.Percentage of froths of different sizes
d.Average froth movement speed
e.Average froth life cycle
5.Features
a.Use high-resolution network industrial camera for professional image analysis
b.The analytical algorithm is advanced and accurate
c.Non-contact type
d.The system equipment is low in manufacturing cost and small in occupancy area
e.Simple and easy for installation and maintenance
f.The system is based on statistic theory and more scientific and reliable than artificial observation
g.The signal is stable as a result of using optical fiber transmission
h.High-frequency image measurement, single-way analysis time<200ms and 6-way/server parallel analysis being achievable
i.Infinite observation point extension
j.Support common industrial communication protocol, such as TCP/OPC/MODBUS, etc. and can be integrated in an industrial control system very easily
k.With image and analytical data storage function, able to inquire historical data, make statistics, do analysis and optimize algorithm conveniently.
