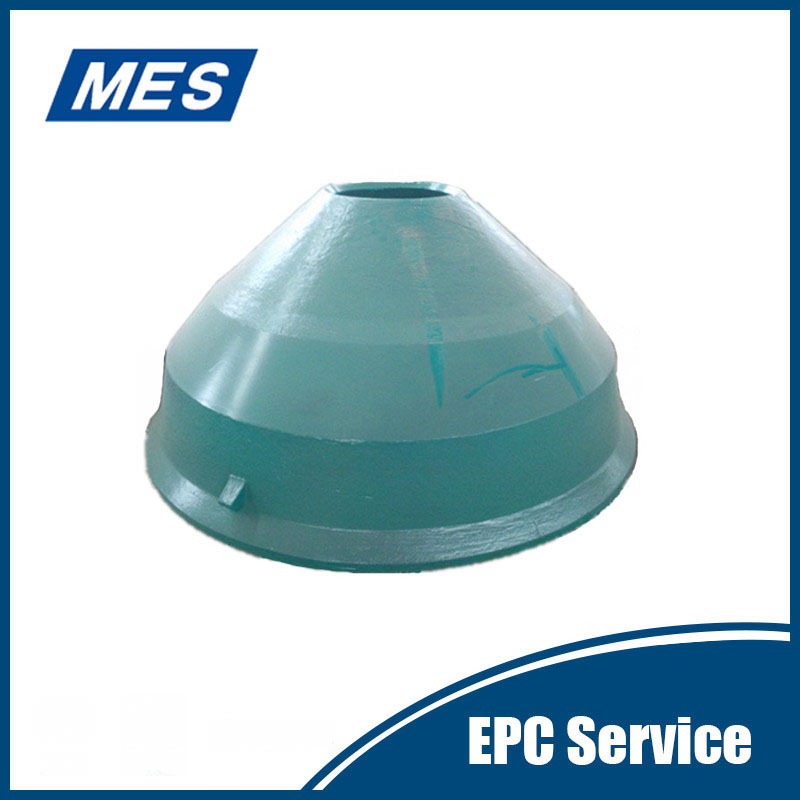

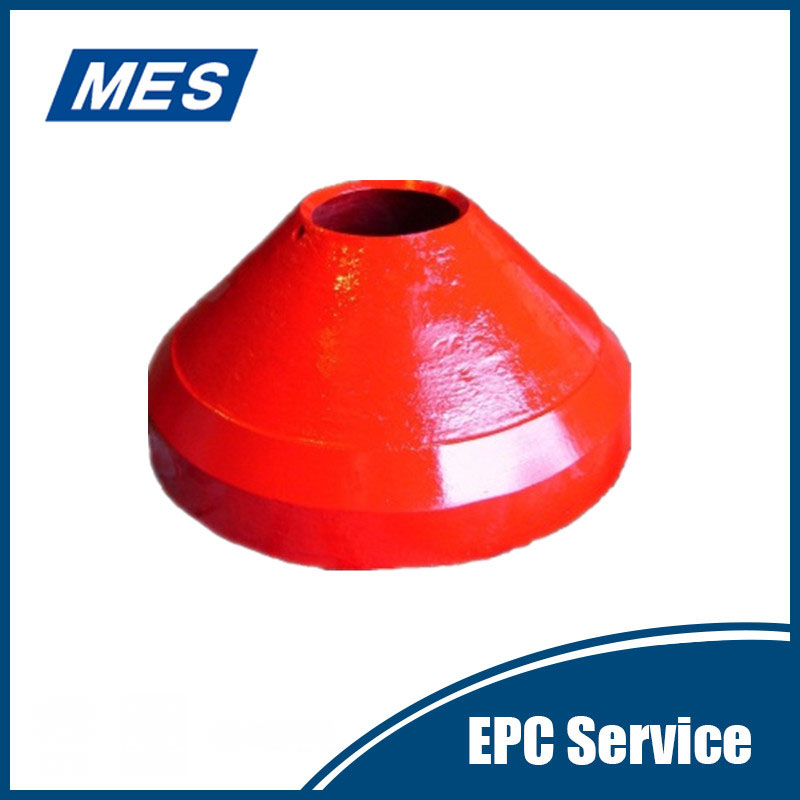

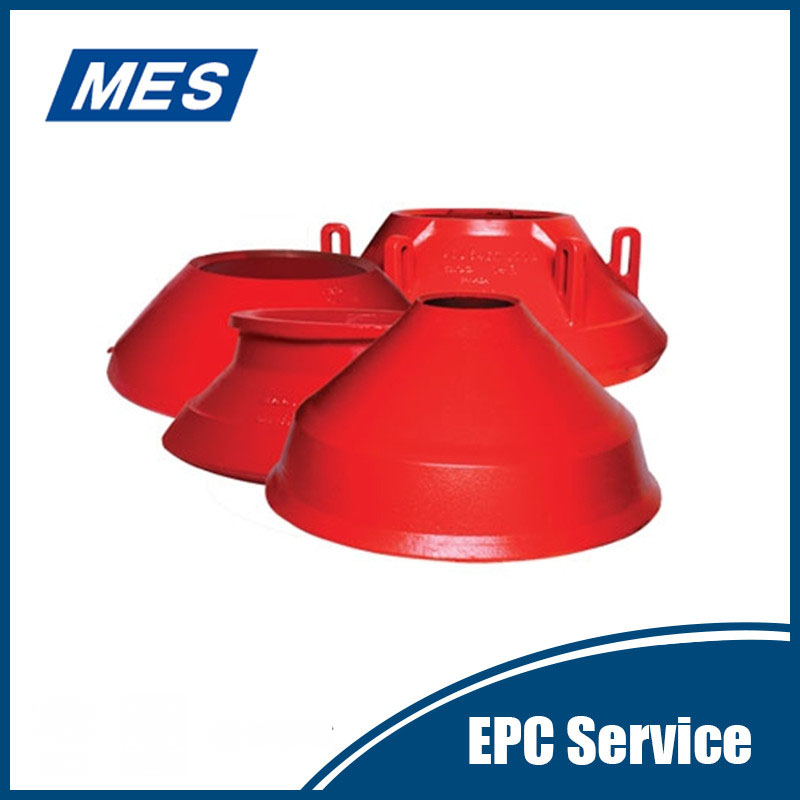

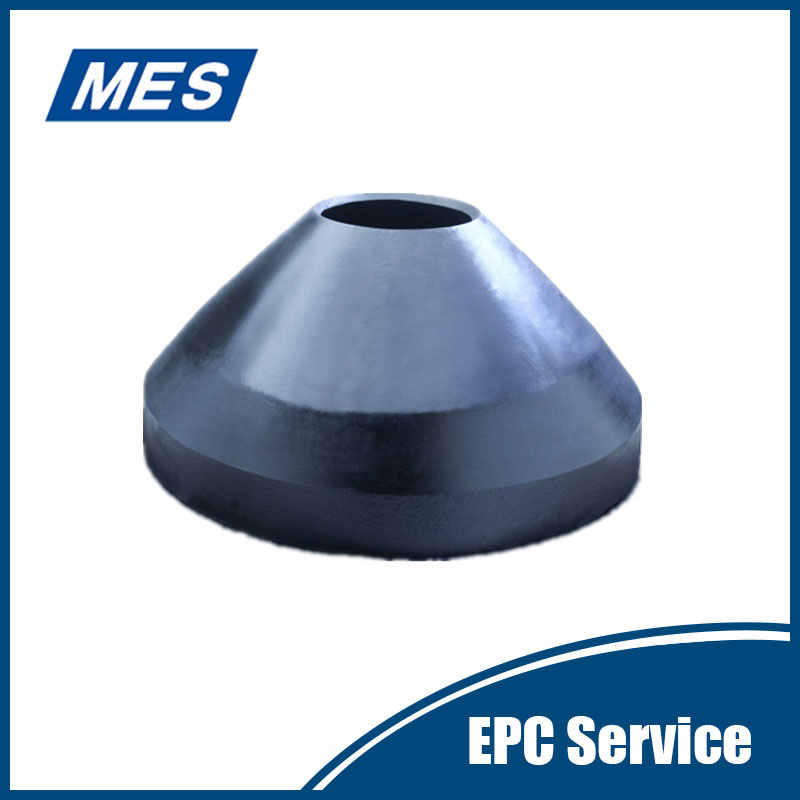

Cone Crusher Mantle Liners
- Mantle liner is made or high manganese, wear parts, anti abrasive, used for cone crusher HP/MP/GP-H/CH/S/CS series.
Model: HP/MP/GP-H/CH/S/CS series wear part
Material: high manganese steel
Specification: Metso/Sandvik HP/MP/GP-H/CH/S/CS series cone crusher replacement component.
Cone Crusher Mantle Liners
1.Product Introduction
Mantle liner is made or high manganese, wear parts, anti abrasive, used for cone crusher HP/MP/GP-H/CH/S/CS series.
Model: HP/MP/GP-H/CH/S/CS series wear part
Type: wear part
Material: high manganese steel
Color: customization
Manufacturing origin:CHINA
Specification: Metso/Sandvik HP/MP/GP-H/CH/S/CS series cone crusher replacement component.
2.Features
2.1.Material: high manganese steel: Mn13%, Mn18%, Mn24%.
2.2.Use: Machinery in metal recovery smash, mine, metallurgy, chemical industry,cement, petroleum etc.
2.3.Production quality testing: High frequency infrared carbon & sulfur analyzer, Metallographic microscope, Machinery performance testing equipment, Hardness testing equipment, Ultrasonic inspection equipment.
2.4.Easy installation: The anti-abrasion block is a semi-permanent part, which is easy for replacement.
3.Material Specifications of High manganese mantle liner
| Material Code | C | Mn | Si | Cr | Mo | P | S |
| ZGMn13-1 | 1.0-1.45 | 11.0-14.0 | 0.30-1.0 | - | - | ≤0.09 | ≤0.04 |
| ZGMn13-2 | 0.90-1.35 | 11.0-14.0 | 0.30-1.0 | - | - | ≤0.09 | ≤0.04 |
| ZGMn13-3 | 0.9-1.35 | 11.0-14.0 | 0.30-0.8 | - | - | ≤0.09 | ≤0.04 |
| ZGMn13-4 | 0.9-1.30 | 11.0-14.0 | 0.30-0.8 | 1.50-2.0 | - | ≤0.09 | ≤0.04 |
| ZGMn13-5 | 0.75-1.30 | 11.0-14.0 | 0.30-1.0 | - | 0.90-1.2 | ≤0.09 | ≤0.04 |
4.Product related information:
HP200/HP300/HP400/HP500 /HP800 /MP800/MP1000/MP1250/GP11/GP100/GP200/GP300/GP600/H2000/H3000/H4000/H6000/H8000/H2800/
H4800/H6800/H7800/H8800/CH400/CH430/CH440/CH660/CH870/CH880/CH890/CH895/CH880/S2000/S3000/S4000/S6000/S3800/S4800/S6800/
CS420/CS430/CS440/CS660 cone crusher mantle liners
Spare part product related information:
Cone crusher main frame liners
Cone crusher mantle liners
Cone crusher bowl liners
Cone crusher arm guards
Cone crusher protection cones
