Liner plates are applied in crushers. The crusher liner plates of MES features in wear resistance, good quality with reasonable price.
Machine Type:Crusher
Material: High Manganese Steel
Toughness: Good
Processing: Casting
Product details

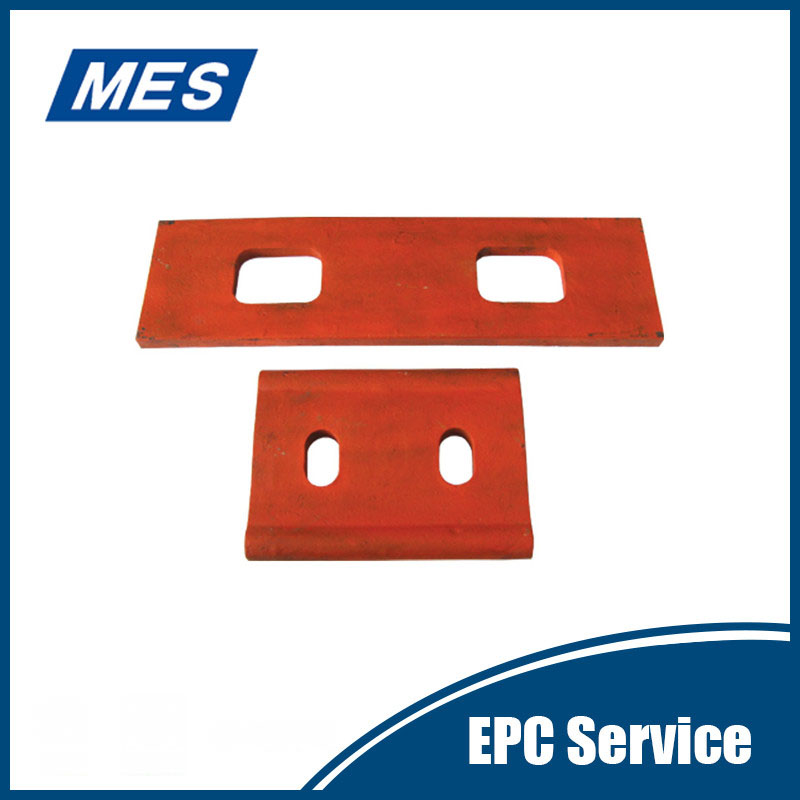

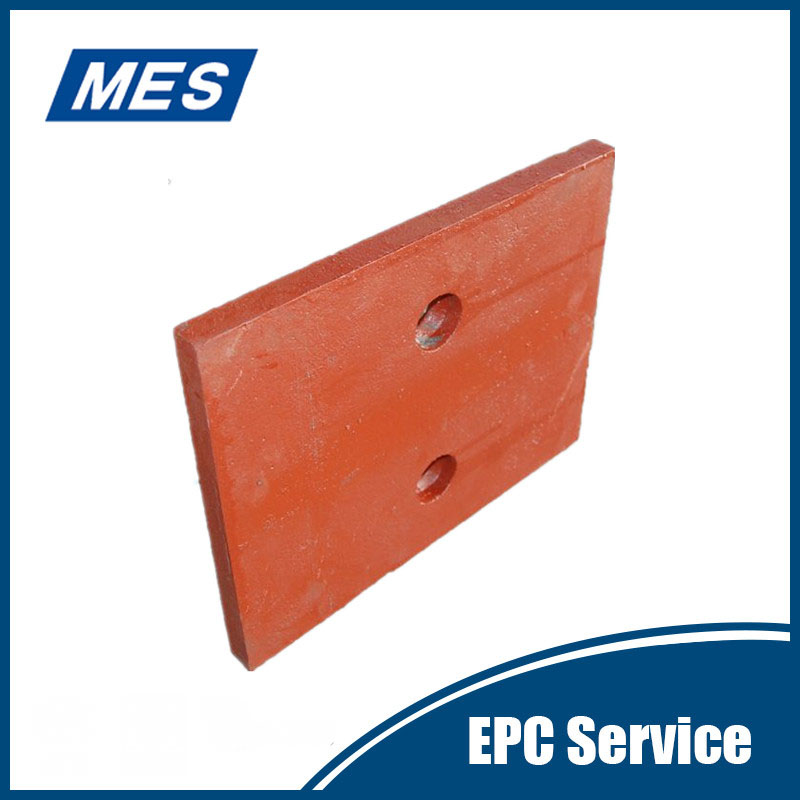

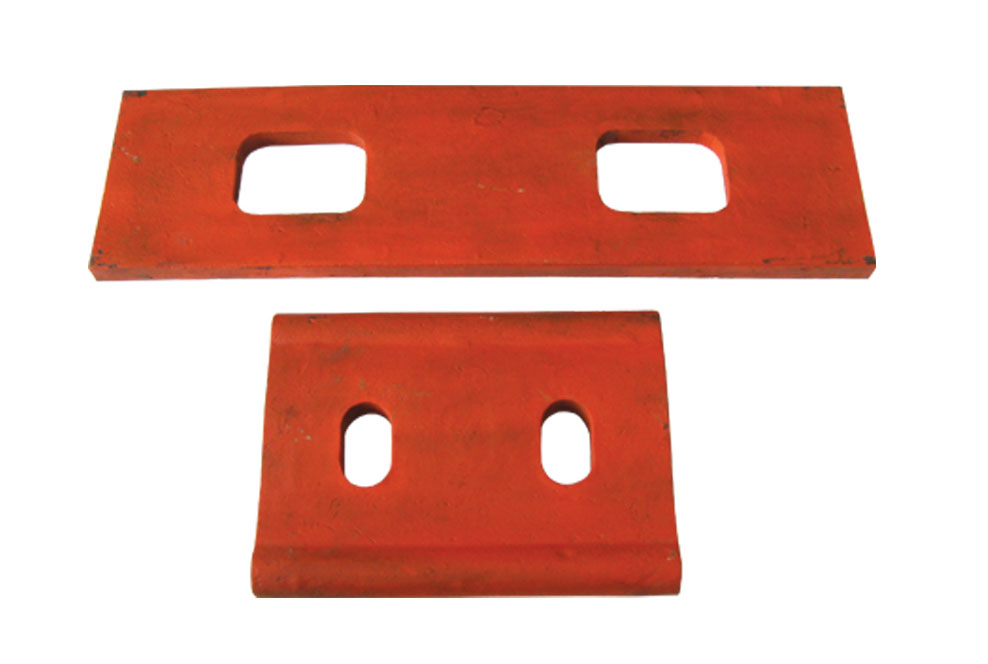

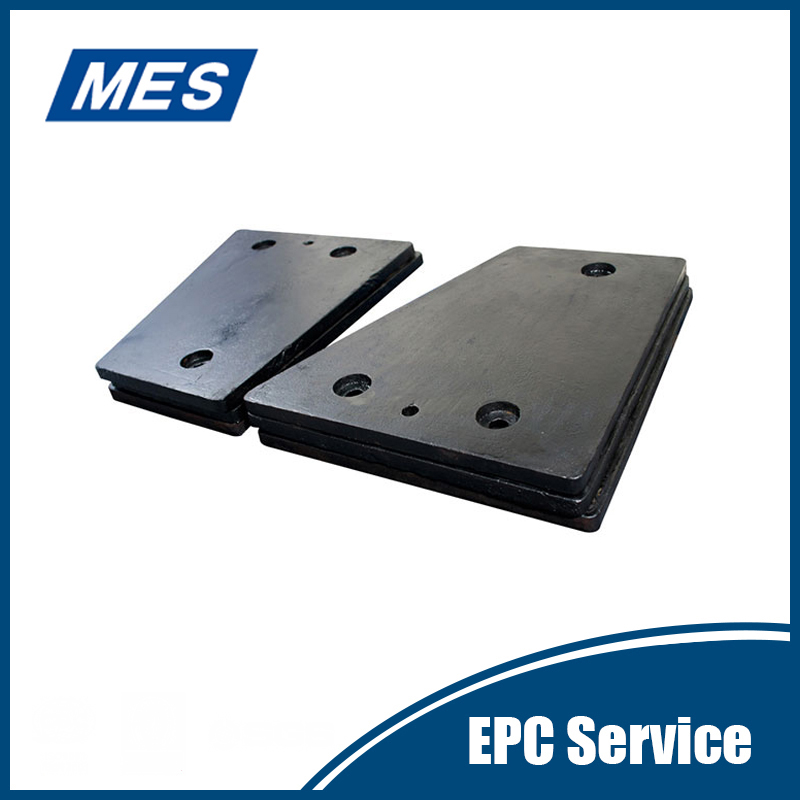

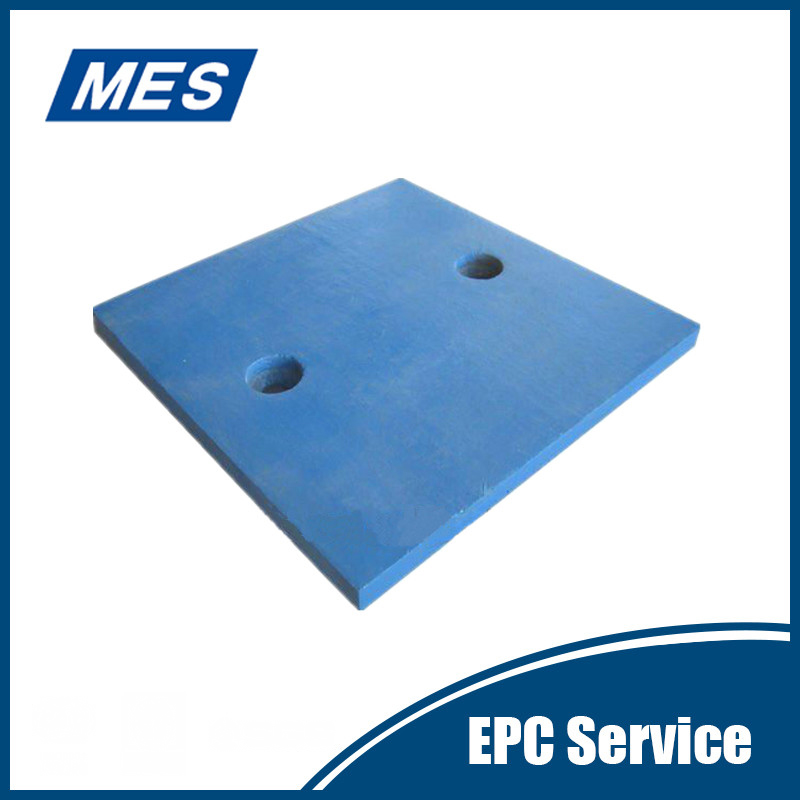

Crusher Liner Plate
1.Material Specifications of Crusher Liner Plate
High Manganess Casting Material Chemical Composition
Code Elem.
C
Mn
Si
Cr
Mo
P
S
ZGMn13-1
1.0-1.45
11.0-14.0
0.30-1.0
-
-
≤0.09
≤0.04
ZGMn13-2
0.90-1.35
11.0-14.0
0.30-1.0
-
-
≤0.09
≤0.04
ZGMn13-3
0.90-1.35
11.0-14.0
0.30-0.8
-
-
≤0.09
≤0.04
ZGMn13-4
0.90-1.30
11.0-14.0
0.30-0.8
1.50-2.0
-
≤0.09
≤0.04
ZGMn13-5
0.75-1.30
11.0-14.0
0.30-1.0
-
0.90-1.20
≤0.09
≤0.04
Please note that we can provide customised materials.
2.Features and Advantages of Crusher Liner Plate
2.1. Use: wear parts for crushers, mining, cement aggregate, recycling, shredding and demolition fields. etc. 2. 2. Certifications: ISO9001. 2.3. Production quality testing: hardness testing, metallographic structure, machinery performance testing,ultrasonic inspection, high frequency infrared carbon and surface analysis etc. 2.4. Competitive products: good quality with reasonable price. 2.5. Strong wear resistance and long life span, can be used in harsh environment and serious abrasion. 2.6. Professional: our factory has over 10 years working experience in casting and forging process and manufacture. 2.7. We can provide customized design according to our clients’ demands and also refine our products by our clients’ feedback.
