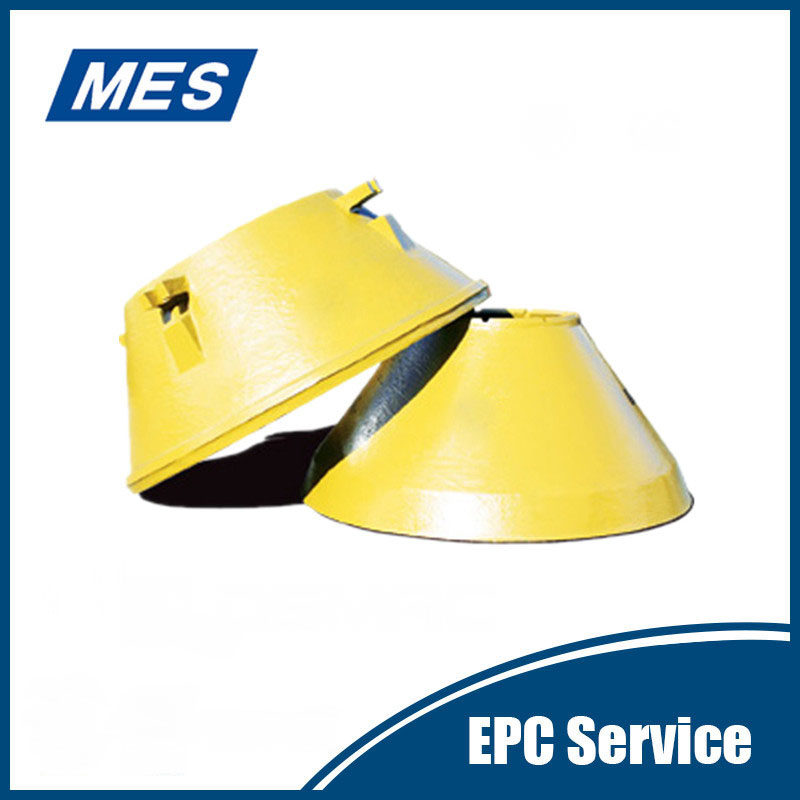

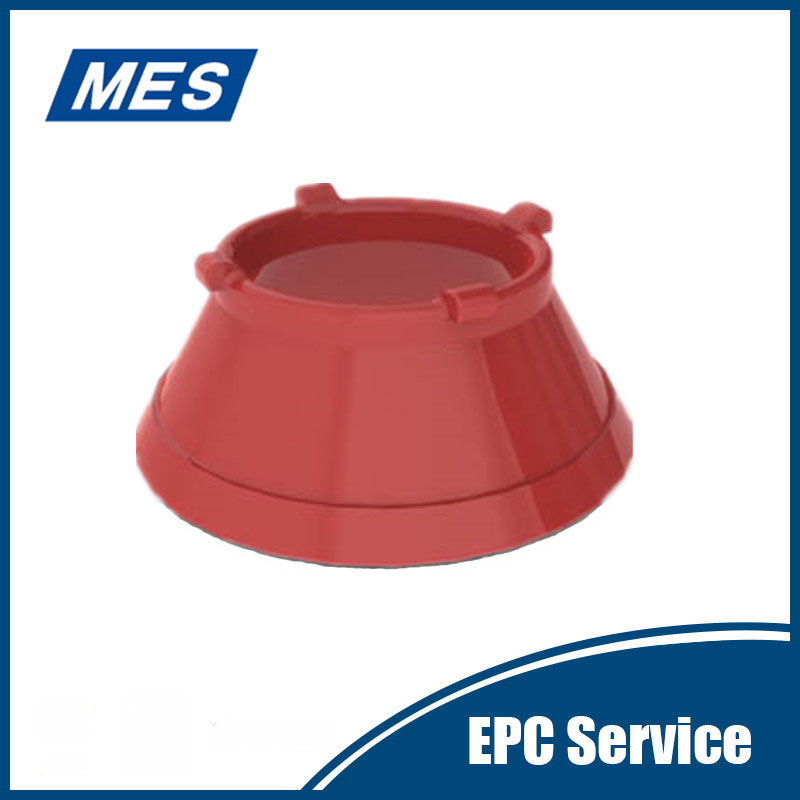

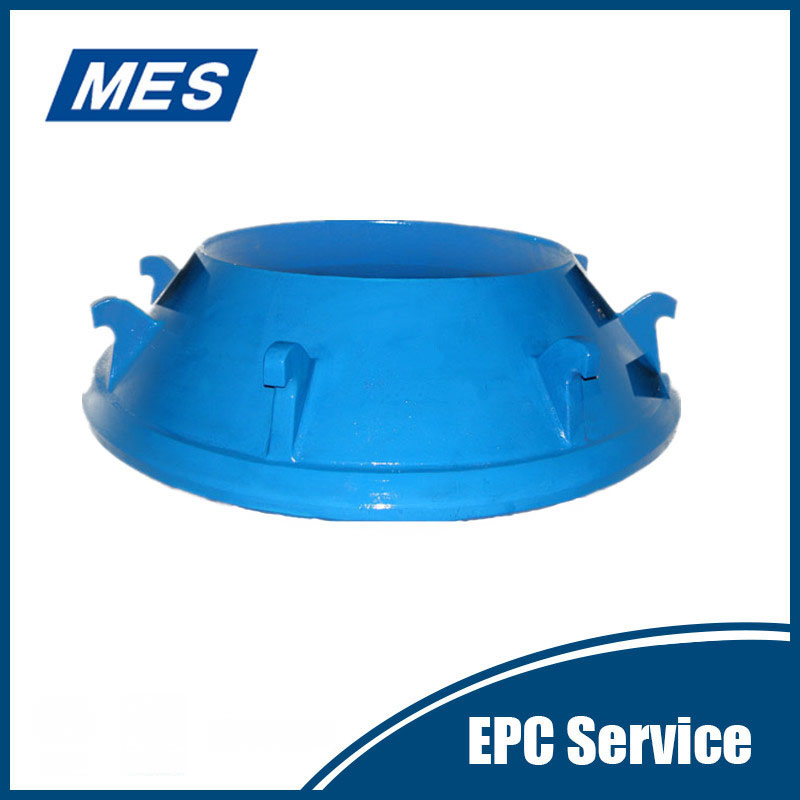

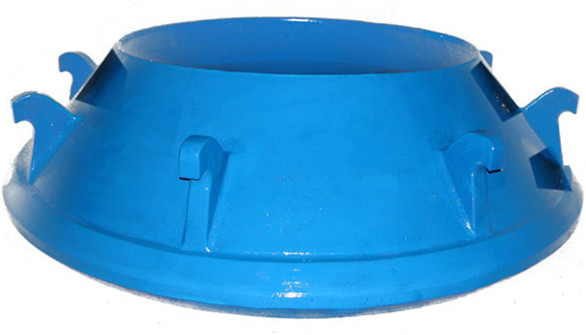

Cone Crusher Concave
- MES produces a comprehensive range of spare parts and wear parts to suite the METSO HP series cone crusher. Wear parts are in material of Mn13% to Mn22% with our without chromium and high chrome iron alloy. MES had become the top standard supplier of replacement for Metso and other famous brand crusher parts during several years development.
Cone Crusher Concave
1.Technical
MES produces a comprehensive range of spare parts and wear parts to suite the METSO HP series cone crusher. The materials of concave, we use the Hadifield-steel , like Mn13Cr2, Mn18Cr2, Mn22Cr2, to ensure the wear resistance. After the modification treatment, combining with the special processing techniques, concave have a service life 30~50% longer than those made of traditional materials. MES had become the top standard supplier of replacement for Metso and other famous brand crusher parts during several years development.
Metso Nordberg HP
HP100 / HP200 / HP300 / HP400 / HP500 / HP700 / HP800
2.Production quality and testing equipment
2.1.Spectrum Analyzer
2.2.Magnetic powder inspection
2.3.Dye inspection
2.4.Ultrasonic inspection undamaged testing
2.5.Hardness testing equipment
2.6.Machinery performance testing equipment
3.Chemical Composition
High
Manganese Casting Material Chemical Composition
Material Code
C
Mn
Si
Cr
P
S
ZGMn13
C:0.9-1.3
Mn:11.0-14.0
Si:0.3-1.0
Cr:1.5-2.5
P:0.06
S:0.04
ZGMn18
C:1.1-1.5
Mn:16.5-19.0
Si:0.8
Cr:1.5-2.5
P:0.07
S:0.04
ZGMn22
C:1.1-1.4
Mn:20-24
Si:0.8
Cr:1.5-2.5
P:0.07
S:0.04
