Intelligent Mobile Mini Stack Reclaime
- HOT Mining has developed the Intelligent Mobile Mini Stack Reclaimer, which is favored by large bulk material storage yard transportation, such as coal or other ore storage yard. It is widely used in electric power, building materials, port, chemical industry and other industries due to its high efficiency transportation capacity.
Intelligent Mobile Mini Stack Reclaimer
Cooperated with our domestic OEM manufacturers, HOT Mining has developed the Intelligent Mobile Mini Stack Reclaimer, which is favored by large bulk material storage yard transportation, such as coal or other ore storage yard. It is widely used in electric power, building materials, port, chemical industry and other industries due to its high efficiency transportation capacity.
I. Product Classification:
Our mobile mini stack reclaimer is mainly divided into two ways for materials of different sizes.

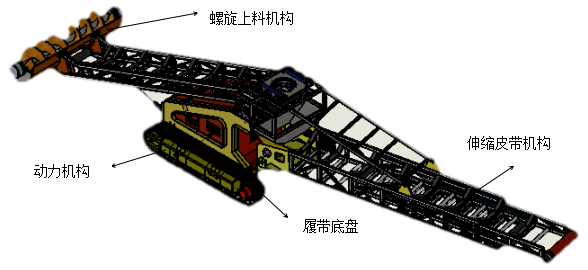

① Spiral stacker reclaimer (material range 0-30mm)

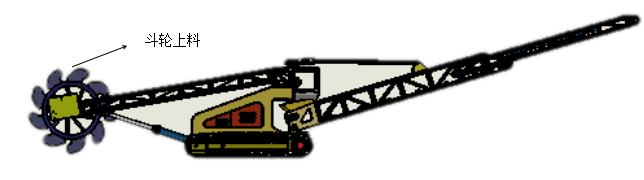

②bucket-wheel stacker reclaimer (material range 0-2000mm, depending on bucket capacity)

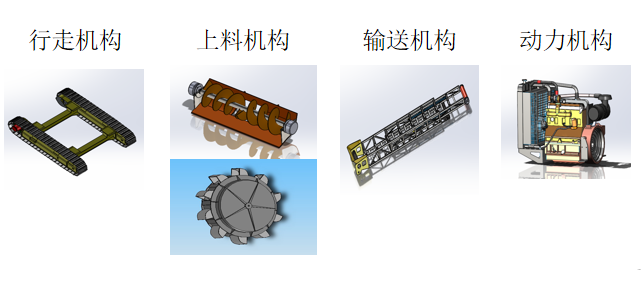

Structure of Stacker Reclaimer:
The stacker reclaimer is divided into 4 major working mechanisms, walking mechanism, feeding mechanism, transportation mechanism, and power mechanism.
Walking Feeding Transportation Power
Mechanism Mechanism Mechanism Mechanism

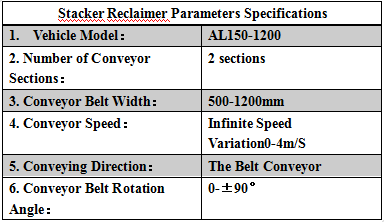

Ⅱ. Parameters
Ⅲ.Functions
(1) Wireless remote-control system (show as picture above)
(2) Flexible movement, separate diesel engine power
(3) System or pure electric power system
(4) Choose from a variety of options, such as dust removal/dust suppression
(5) Fully sealed feed, eliminate on-site leakage
(6) Optional fixed or rotating conveyor
(7) Optional conveyor length according to field conditions
IV. Features
1. Easy to use, using spiral feeding, crawler walking, telescopic conveyor belt transmission.
2. The whole machine is very convenient to move and is suitable for bulk loading operations in most environments.
3. The conveyor belt can automatically adjust the height. The front-end length is retractable, and the truck does not have to move when loading.
4. Applicable goods: loading of gravel, sand, coal, grain and other bulk materials.
5. Applicable working conditions: used for large storage equipment such as vehicles and ships, or used for stacking.
6. Rated load capacity: 0-1200t / h
V. Comparison Between Mini Stacker Reclaimer and Loader
Performance comparison: mini stacker reclaimer has a strong transport capacity, can completely replace the same amount of loader
AL500 intelligent loading machine and 5T loader parameters comparison
