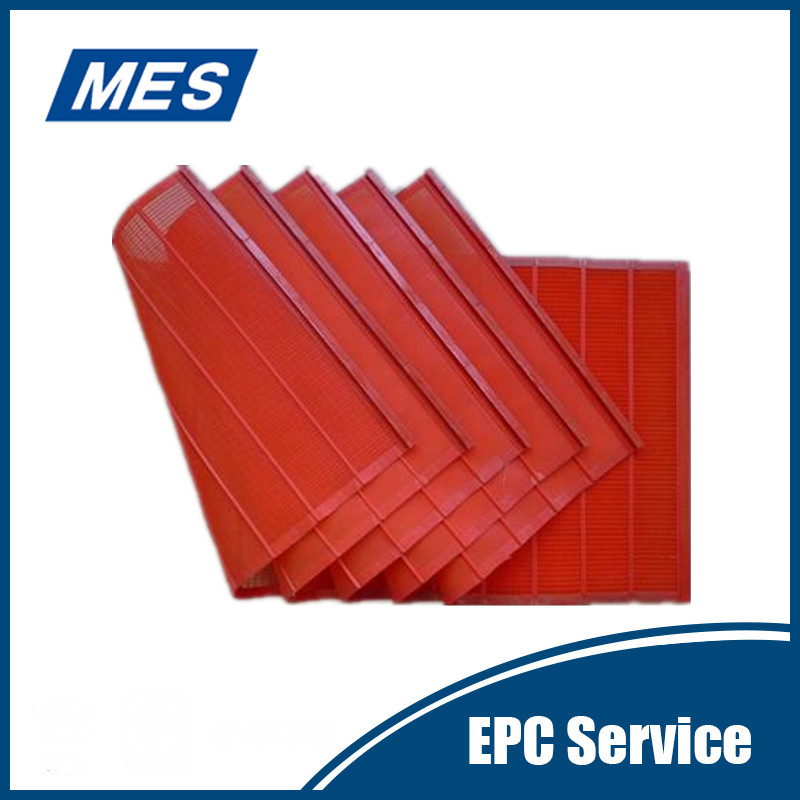

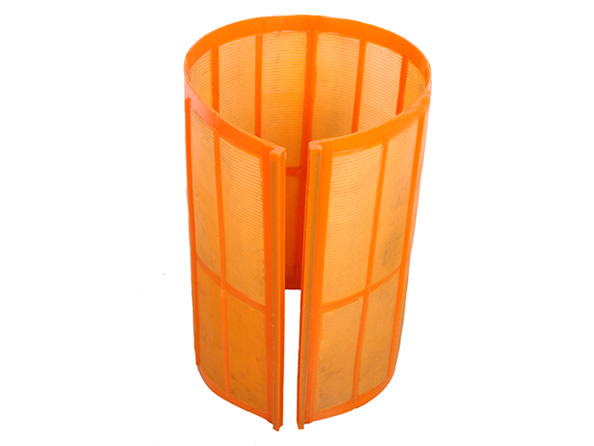

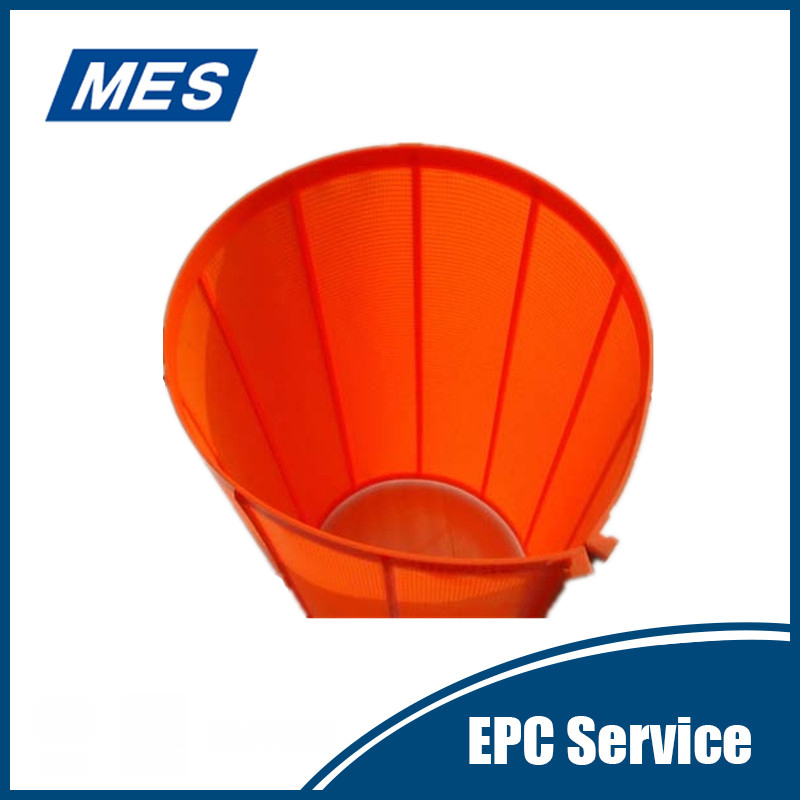

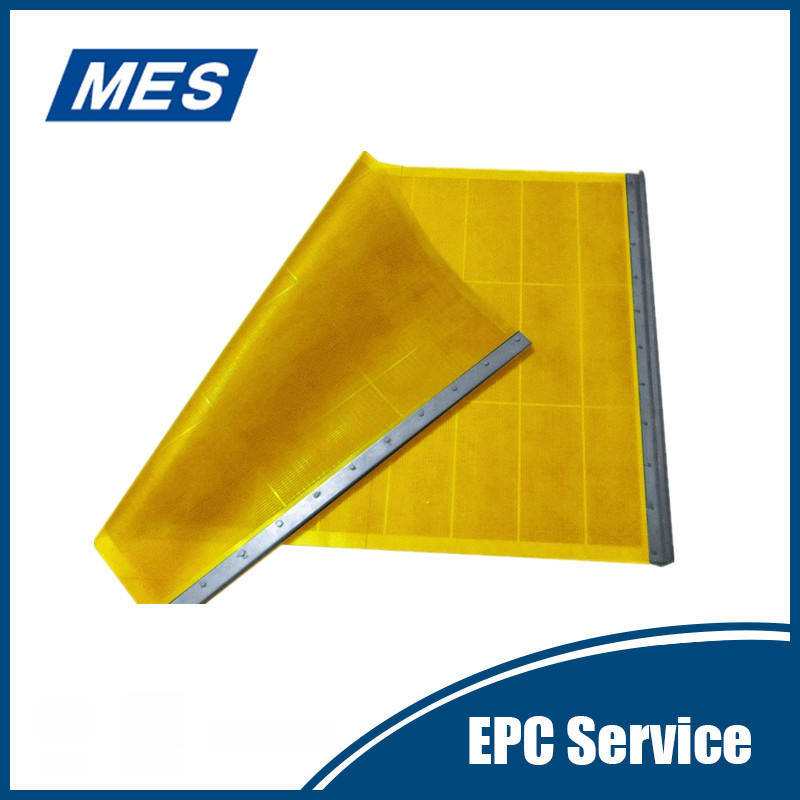

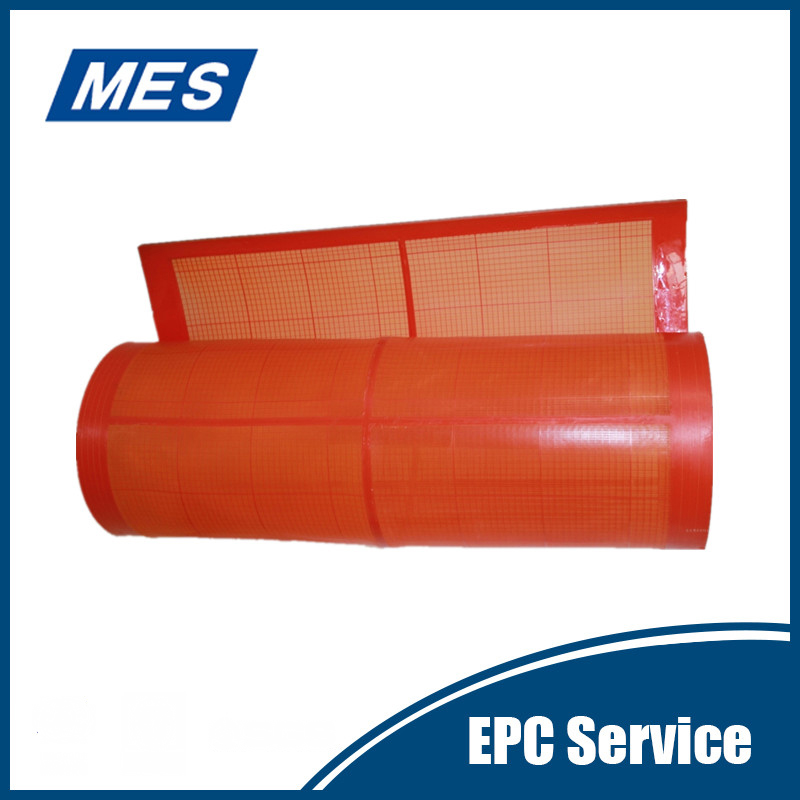

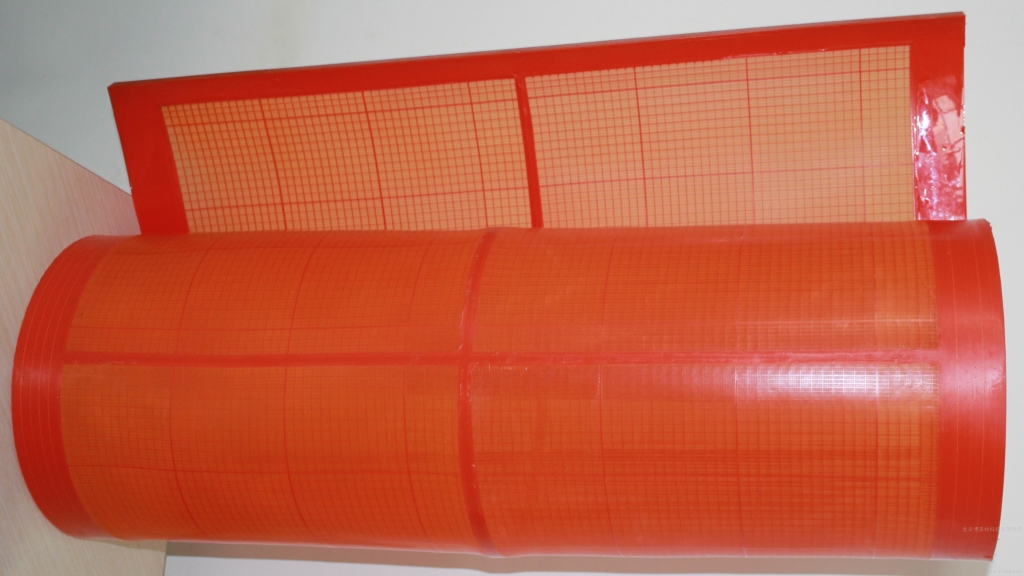

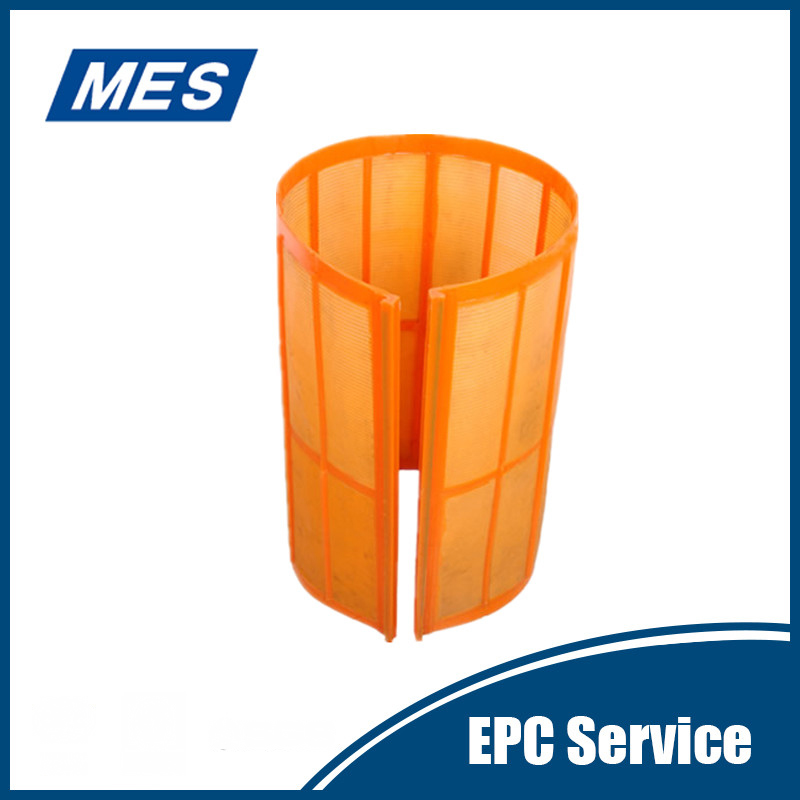

TPU Fine Screen Mesh
- TPU fine screen mesh of MES has good carrying capacity, impact resistance and shock absorbing.
Material:Thermoplastic Urethane (TPU)
Application:Mineral Processing
Model Number: R-A/B/C/D type
TPU Fine Screen Mesh
1.Introduction
Thermoplastic Urethane(TPU) Fine Mesh Screen is a new environmental protective screen developed by Beijing HOT Mining Technology Co., Ltd. It’s a significate contribution to the science of particle separations. By the usage of advanced precision mold manufacturing technology in the world and unique advanced process manufacturing. And has obtained a utility model patent certificate.
Thermoplastic Urethane (TPU) Fine Mesh Screen has excellent physical properties. It has both the toughness of CPU screen and the rigidity of the stainless steel screen, can ensure the size of the screen openings keeping the same while working, and maximize the stability of the particle size under the screen. Not easy to plugging the mesh. At the same time, using of advanced precision mold manufacturing technology, the TP screen has more open area and maximizing the separation efficiency.
Thermoplastic Urethane(TPU) Fine Mesh Screen is beautiful, it can be made in any color. It is lightweight, easy to install, and has lower noise, reducing greatly the work intensity and improve the working environment.
Thermoplastic Urethane(TPU) Fine Mesh Screen has good carrying capacity, impact resistance and shock absorbing. Excellent cold resistance: TPU glass transition temperature is relatively low, and it can keep the good elasticity, flexibility and other physical properties at minus 35 degrees. Good wear and corrosion resistance, acid, alkali, oil, dirt and water resistance, aging& oxidation resistance. Anti-mildew& antibacterial. Because of the reasons above, our Thermoplastic Urethane(TPU) Fine Mesh Screen has long life, can be used for over six months, almost be 2-5 times of the stainless steel screen.
- Very Fine Separation---Opening as fine as 45micorns(325 mesh)
- High Separation Efficiency---2-5 times of the ordinary screen
- Long Life---Can be used for six months to more than one year
- Strong Flexibility---Can be used on all kinds of high frequency vibrating machines
- Short Lead Time---Make the requested screen within 2 months
- Easy and reliable installation---Fast installation and no material leakage
- Maintenance-free---Hole can’t be plugged& washing-free
- Environmental Protective---Recycled material
3.Specifications
(1)R-A Type
R-A type(with the mounting hooks in the both sides of 700mm), Two kinds of length series(mm):
A: The basic length is 1045, and can be longer with each 100, such as: 1145, 1245, 1345…
B: The basic length is 1110(1120), and can be longer with each 100, such as: 1210(1220), 1310(1320),1410(1420)…
The screen size and technical data:
|
Openings Size (mm)
|
The length of the Openings (mm)
|
Opening Area (%)
|
|
0.06 |
2.65 |
30~50% |
|
0.075 |
2.65 |
|
|
0.10 |
2.65 |
|
|
0.125 |
2.65 |
|
|
0.15 |
1.72 |
|
|
0.18 |
1.72 |
|
|
0.20 |
2.65 |
|
|
0.23 |
2.65 |
|
|
0.25 |
2.65 |
|
|
0.30 |
2.65 |
|
|
0.35 |
2.65 |
|
|
0.375 |
2.65 |
|
|
0.40 |
2.65 |
|
|
0.70 |
7.00 |
(2) R-B Type
The width is 1200mm(effective width is 1000mm, blind width is 100mm in the two ends), the mounting hooks in the both sides of 1200mm). The basic length is 740mm and can be longer with each 111.5, such as 851.5, 963, 1074.5……2300, 2411.5…
The screen size and technical data:
|
Openings Size(mm)
|
The length of the Openings (mm) |
Openings Area(%) |
|
0.06 |
2.07 |
25~45% |
|
0.075 |
2.07 |
|
|
0.10 |
2.07 |
|
|
0.125 |
2.07 |
|
|
0.15 |
2.07 |
|
|
0.18 |
2.07 |
|
|
0.20 |
2.07 |
|
|
0.23 |
2.07 |
|
|
0.25 |
2.07 |
|
|
0.30 |
2.07 |
|
|
0.35 |
2.07 |
|
|
0.375 |
2.07 |
|
|
0.40 |
2.07 |
(3) R-C Type
The width is 1200mm(effective width is 1140mm, blind width is 30mm in the two ends), the mounting hooks in the both sides of 1200mm..The basic length is 740mm and can be longer with each 111.5mm, such as: 851.5, 963, 1074.5…
The screen size and technical data:
|
Opening Size（mm）
|
The length of the Openings（mm）
|
Opening Area（%）
|
|
0.06 |
2.07 |
25-45% |
|
0.075 |
2.07 |
|
|
0.10 |
2.07 |
|
|
0.125 |
2.07 |
|
|
0.15 |
2.07 |
|
|
0.18 |
2.07 |
|
|
0.20 |
2.07 |
|
|
0.23 |
2.07 |
|
|
0.25 |
2.07 |
|
|
0.30 |
2.07 |
|
|
0.35 |
2.07 |
|
|
0.375 |
2.07 |
|
|
0.40 |
2.07 |
(4) R-D Type
There’re two kinds listed below:
A: The basic length is 1045, and can be longer with each 100, such as: 1145, 1245, 1345…The basic width is 700, and can be longer with each 328, such as: 1028, 1356, 1684…The mounting hooks in the both sides of 700mm. The screen size can be such as: 700*1045, 700*1145, 700*1245…1028*1045、1028*1145、1028*1245…
B:The width is 1200mm, the mounting hooks in the both sides of 1200mm., The basic length is 700mm and can be longer with each 328, such as: 1028, 1356, 168…
