XRF Elemental Analyzer
- DF-5738 Online Single-stream XRF Grade Analyzer is an online analyzing instrument with a single flow channel and for measuring multiple elements. It is an instrument for real-time analysis to various pulp elements in industrial production process.

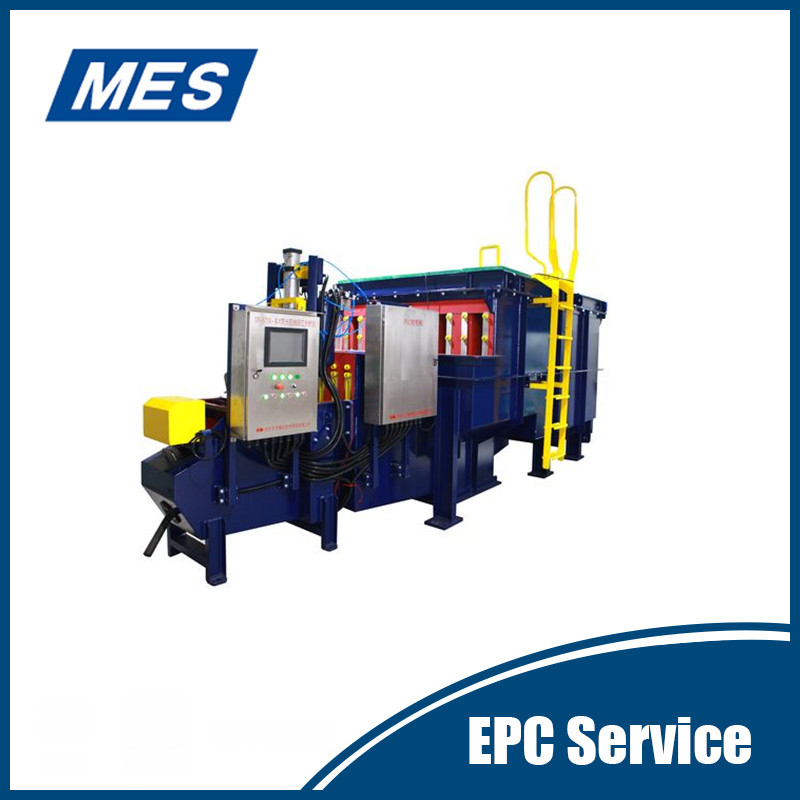

DF-5738 Single-stream XRF Elemental Analyzer
1.Product Overview
DF-5738 Online Single-stream XRF Grade Analyzer is an online analyzing instrument with a single flow channel and for measuring multiple elements. Online XRF Grade Analyzer uses the energy dispersion method to analyze and process mixed energy spectrums by exciting various elements in materials for them to produce complicated X-ray mixed energy spectrums, and then obtains the element types and contents in materials. Online XRF Grade Analyzer is an instrument for real-time analysis to various pulp elements in industrial production process. Saving the complicated and tedious sample processing procedure, directly analyzing and measuring pulp and giving analytical results rapidly, the instrument can participate in and guide the automated control of production process.
a.True real-time online measurement of multiple elements, timely reflection of process fluctuation
b.Almost need no pump and sample conveying pipe, install nearby to save investment and operation costs, reduce maintenance workload
c.Have a multi-splitting structure subject to no influence of ore quantity and improve sample representativeness
d.The unique buffer design reduces pulp flow rate and equipment wearing
e.Software design humanization, easy for operation and easy to learn and understand
2.Product Composition

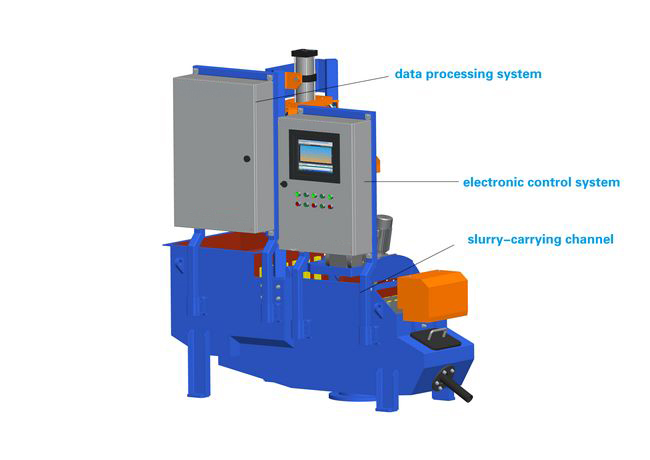

DF-5738 Online Single-stream XRF Grade Analyzer mainly consists of detecting system, data processing system (including signal processing master, board card, applications, alarm system, etc.), stream-carrying tank body (including analytical flow channel, automatic sampler, mixer, etc.), electric control system (including control unit, panel computer, electric control unit cabinet), etc.

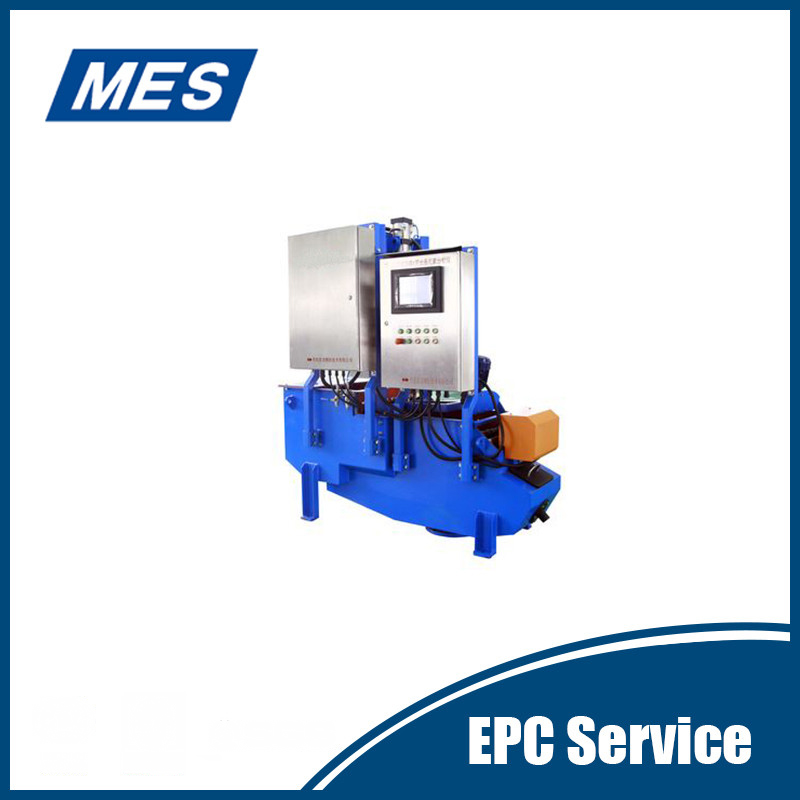

DF-5738 Inline X-ray Fluorescent single-stream Analyzer
The probe and exciter are enclosed in the probe cavity, which is installed on probe car carriage. Under the control of a pneumatic elevator, the probe goes up and down. In measurement, the probe cavity body is submerged in the pulp. When stopping measurement or any failure occurs to the equipment, the cavity body is lifted up to a safe position.

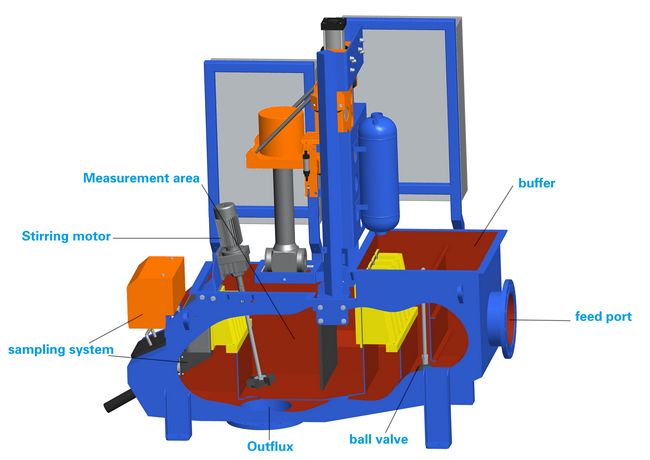

Structure of analyzer
The stream-carrying tank body (as shown in Fig. 2) is a kind of container specially designed to analyze and discharge pulp rationally (analytical area). It can deliver representative pulp samples to the probe in a uniform and stable manner. The tank body is in steel inside and in rubber outside and in an upper and lower double-deck structure. In case of any accidental pulp jam, the ball valve can be adjusted to discharge the pulp from the lower ore discharge directly. The sampling system is located in the front end of the tank body, which is used to verify and calibrate the analyzer before use.
The dynamic range of pulp that can be processed by the tank body is large and the measurement is representative.
Ensure the liquidity of pulp and reduce artificial maintenance workload.
Increase the wearability and corrosion resistance of the tank body.
The signal processing system fulfills collection, amplification, shaping and processing of probe signals, and transmits the processed signals to the XRF software. At the same time, it can also monitor the status of the probe cavity window and transmit the window status signal to the control unit of the single-chip.
The control unit controls and monitors the operating status of the instrument, and transmits the operating status of the instrument to the XRF software through RS-485/RS232 data communication mode (the figure below is the initial interface of the XRF software).
The analyzer is equipped with a panel computer. Users can select and configure other hardware according to your needs, such as printer, etc. The operating platform of the XRF software of Dongfang Measurement & Control Technology Co., Ltd. is Windows 2000 and higher systems. The software is responsible for data collection, processing, operation, calibration, historical inquiry, printing, etc. for the whole system.
3.Technical Parameters
Online momentary measurement to pulp stream
Elements it can analyze: All elements above the atomic number of 20
Element content range: 100% ~ 0.001%
Relative error: 0.5% ~ 10%
Repeatability and long-term stability of ray energy spectrum counting rate≤0.1%
Material stream temperature it adapts to: 0~40°C
Ambient temperature it adapts to: 0~40°C
Ambient humidity it adapts to: 0~90%
Basic equipment parameters
•Net weight of XRF analyzer with a single flow channel: 1,050Kg
•Effective volume of a single analytical tank: 68L
•Equipment outline dimensions (L×W×H): 1,900×1,000×2,085mm (to be determined according to actual pipe and flow)
•Basic operation, repair zone of equipment (L×W): 2,900×2,000mm (to be determined according to actual pipe and flow)
Supply condition
•Grounding requirement: Resistance to ground＜4Ω
•Voltage requirement: 220V/380V
•Water body requirement: Clean with no suspension particles; 0.4MPa＜water pressure＜0.8MPa
•Gas requirement: Clean continuous gas supply; 0.6MPa＜gas pressure＜0.8MPa
4.Product Fetures
Single-flow channel, single-point and multi-element measurement
The structure is characterized by buffer, splitting, secondary splitting, etc.
Provide a mixer motor to mix pulp and make pulp uniform and free from deposition
High-resolution SDD semi-conductor probe, requiring no liquid nitrogen for refrigeration and low maintenance workload
A sampling device for calibration purpose is equipped
High-speed signal processing system
